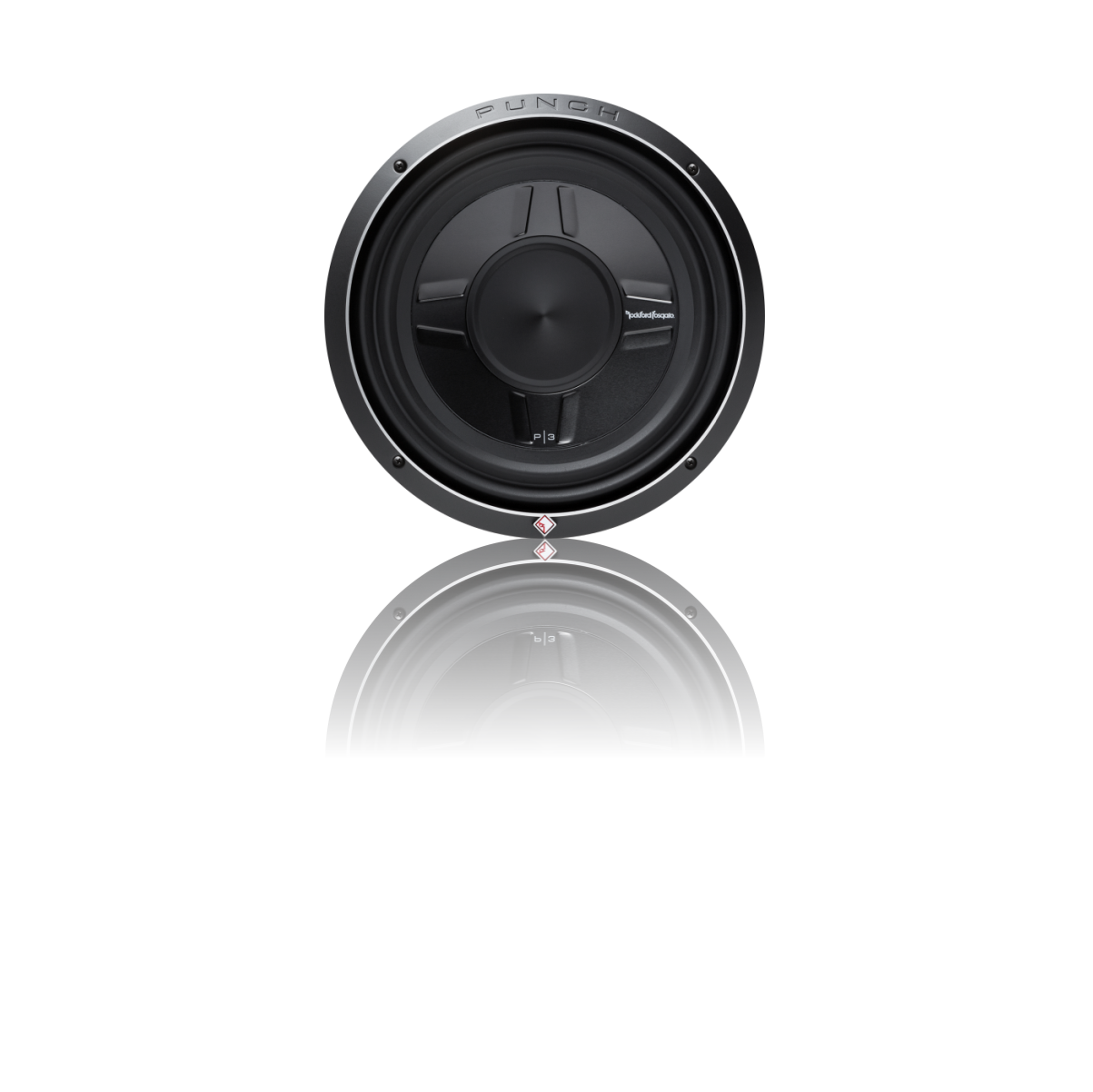

P3SD2-12 – Rockford Fosgate – Punch 12″ P3S Shallow 2-Ohm DVC Subwoofer

In stock

The Rockford Fosgate P3S 12″ shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

  • M-Roll Santoprene™ surround
  • StampCast basket with integrated spider venting
  • Anodized aluminum cone and dustcap
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Diamond cut cast aluminum trim ring with optional grille
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty
Items that are marked "Backorder" may have 14-21 days shipping delay.

Specifications

Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
1 Watts
Rated Power
(RMS Continuous Power)
400 Watts x 1 @ 4Ω
800 Watts x 1 @ 2Ω
1200 Watts x 1 @ 1Ω
Dynamic Power
(PVC/PowerCube®)
489 Watts x 1 @ 4Ω
889 Watts x 1 @ 2Ω
1389 Watts x 1 @ 1Ω
Bridgeable
No
Frequency Response
20 Hz – 250 Hz
Input Sensitivity
Low-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology Class
Class-D
Efficiency (average)
> 80%
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
1Ω: <1.0%
Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthInfrasonic:
15 Hz – 40 Hz @ 12dB/Octave Butterworth
Remote Controls
Yes
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 – 16 VDC
Recommended Fuse
(not included)
200 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
121 A
Dimensions (H x W x D)
(4.9 cm x 17.3 cm x 28.5 cm)

Overview

The Rockford Fosgate P3S 12″ shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

  • Diamond cut cast aluminum trim ring with optional grille
  • Dual linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • M-Roll Santoprene™ surround
  • Shallow Motor Assembly
  • Anodized aluminum cone and dustcap
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty

Specification

Power Handling (Watts RMS)
400 Watts RMS
800 Watts Max
Size
12″
Nominal Impedance
Dual 2-Ohm
Magnet Weight (oz)
51 oz. (1.45 kg.)
Voice Coil Diameter
2.5″ (65.5 mm)
Shipping Weight
13.25 Lbs. (6.01 kg.)
Fs (Hz)
34
Qts
0.67
SPL (dB @ 1w/1m)
85
Cutout Diameter
11.22 in. (285.0 mm)
Woofer Displacement
0.086 cu. ft. (2.45 Liters)
Vas (Liters)
35.3
Speaker Connector
Dual 10 AWG Compression
Qes
0.75
Mounting Depth
3.65 in. (92.5 mm)
Qms
6.60
Xmax (mm)
8.4
CEA-2031 Compliant
CEA-2031 Guidelines
Re (Ohms)
3.40
Le (mH)
2.8
Sd (cm2)
500
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.0 cu. ft. (28.3 Liters)
Vented Box Volume (Vb)
1.25 cu. ft. (35.3 Liters)

Videos

Owner's Manual

P3SD2-12.pdf Owners Manual
