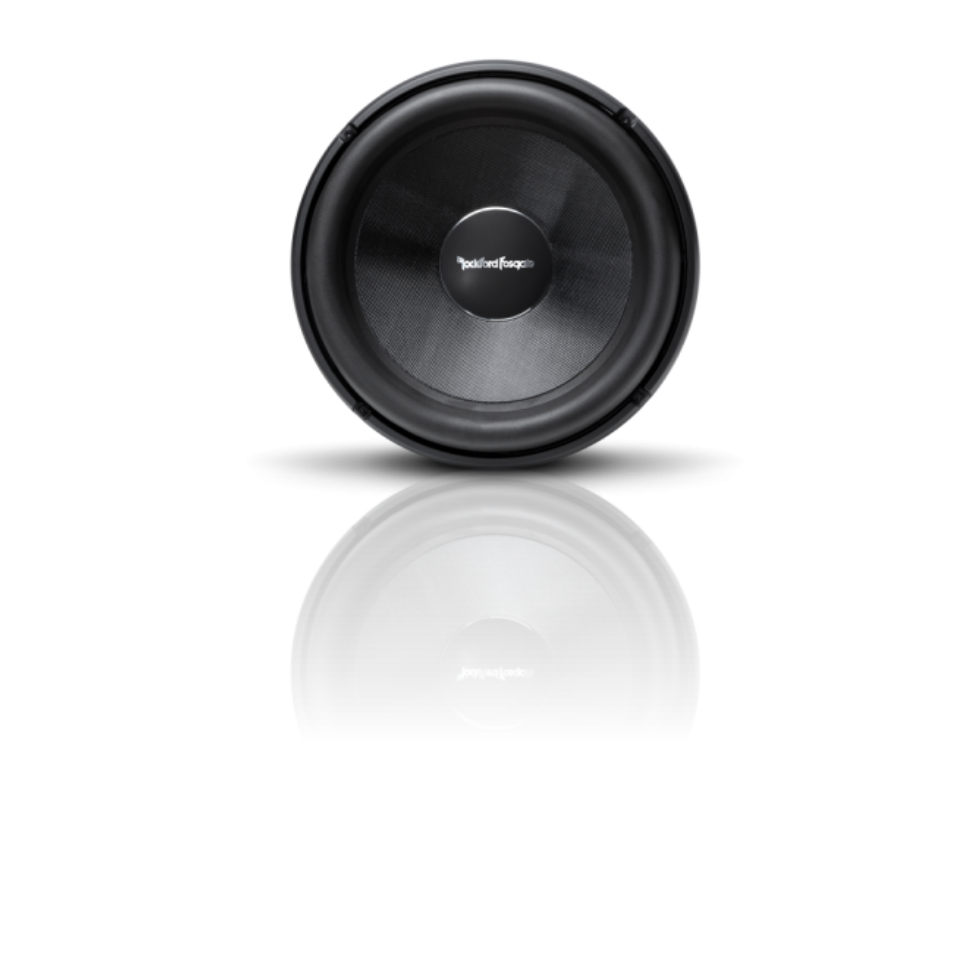

T2S1-16 - Rockford Fosgate - 16 Power 16" T2 Single 1-Ohm Subwoofer
T2S1-16 - Rockford Fosgate - 16 Power 16" T2 Single 1-Ohm Subwoofer - Image 2

T2S1-16 – Rockford Fosgate – 16 Power 16″ T2 Single 1-Ohm Subwoofer

SKU T2S1-16 Categories ,

Out of stock

Dealer Login to Order Now

The re-engineered T1 Slim subwoofer series delivers next-level reliability and tactile bass performance, offering improved responsiveness and exceptional thermal management. Available in both sealed and ported options, these subwoofers are designed for the tightest installations, while still providing all the bass you demand. Sold individually (1 each).

Sound of Surround – Utilizing Nano Cell Direct injection and a bonded co-molded surround, the T1 series subwoofers ensures maximum reliability and high efficiency low end bass extension.

VCCF (Voice Coil Composite Former) – The voice coil is the heart of any speaker, and ours is crafted from a specialized composite material rigorously tested to withstand extreme heat and low thermal conditions, ensuring no-quit power and minimal motor distortion.

Dual Spiders – The voice coil carrier features a asymmetric aligned 2-spider design to deliver enhanced bass response. Each spider works together to handle a range of low-end notes, ensuring you never miss any bass hits in your music.

Overview

MAX BASS, SLIM SPACE



This Gen-2 version of Rockford Fosgate’s “T1 Slim” subwoofer is designed to deliver big bass in a compact, shallow design. It’s been re-engineered with more mass to fit in smaller enclosures and includes upgrades like a new surround and better heat management.  The “S” sealed version is designed for smaller sealed enclosures and work best in closed environments (truck cab).



The voice coil now uses pure copper wire for better conductivity, paired with a new composite former to dissipate heat and reduce distortion. Additionally, an aluminum spider spacer improves cooling.  The suspension utilizes a new polymer surround, made using an advanced NCDI (Nano Cell Direct Injection) process to enhance efficiency and durability without risking dry-rot.

Features

  • Supercritical synthetic organic polymer surround
  • Linear Carbon Fiber/PMI/Glass Fiber cone with aluminum dustcap
  • Co-molded surround and cone body chemically bonded for high durability
  • Symmetrical ultra-flexible braided flat tinsel leads resistant to fatigue
  • Dual Nomex progressive spiders with stitched tinsel leads
  • Dual wound single 2.5″ pure copper voice coil with interior and exterior coils
  • 1 Year Warranty
  • Diecast aluminum frame with integrated heat sink fins
  • Custom 10 AWG slot loaded brass push spring terminals with corrosion resistant tin plating
  • Detachable die cast aluminum trim ring
  • Optional protective grille insert available
  • Optimized for compact sealed enclosures
  • High temp, high energy Neodymium motor structure

Specifications

CTA-2031 Compliant
CTA-2031 Guidelines
Size
10″
Subwoofer Type
Shallow
Frequency Response
27 – 250 Hz
Nominal Impedance
2Ω
Fs (Hz)
36
Qes
0.86
Qms
7.0
Qts
0.76
Vas (Liters)
15.4
Sd (cm2)
356
Re (Ohms)
1.8
Le (mH)
0.71
Xmax (mm)
15
SPL (dB @ 1w/1m)
82
Power Handling (Watts RMS)
500 Watts RMS
1000 Watts Max
Speaker Connector
10 AWG slot loaded
Voice Coil Type
Single Voice Coil
Voice Coil Diameter
2.5″ (63.5mm)
Magnet Weight (oz)
15.1 oz. (0.43 Kg)
Cutout Diameter
9.13 in. (232 mm)
Mounting Depth
3.01 in. (76.5 mm)
Woofer Displacement
0.028 cu. ft. (0.82 Liters)
Sealed Box Volume (Vb)
0.5 – 0.75 cu.ft. (14.2 – 21.2 Liters)
Vented Box Volume (Vb)
Not Recommended
In The Box
(1) 1125-73494-01 Bit Driver, 40mm 5.0mm
(4) 1125-80626-01 4mm Hex, M5x43mm
(8) 1125-80626-01 4mm Hex, M5x43mm Self Tap
Shipping Weight
11 Lbs. (4.99 Kg.)
