FRDNG-SUB-R2SD2- 10″ R2 2-Ohm DVC Shallow Subwoofer and Ford Ranger Enclosure – Under Seat

Only 1 left in stock

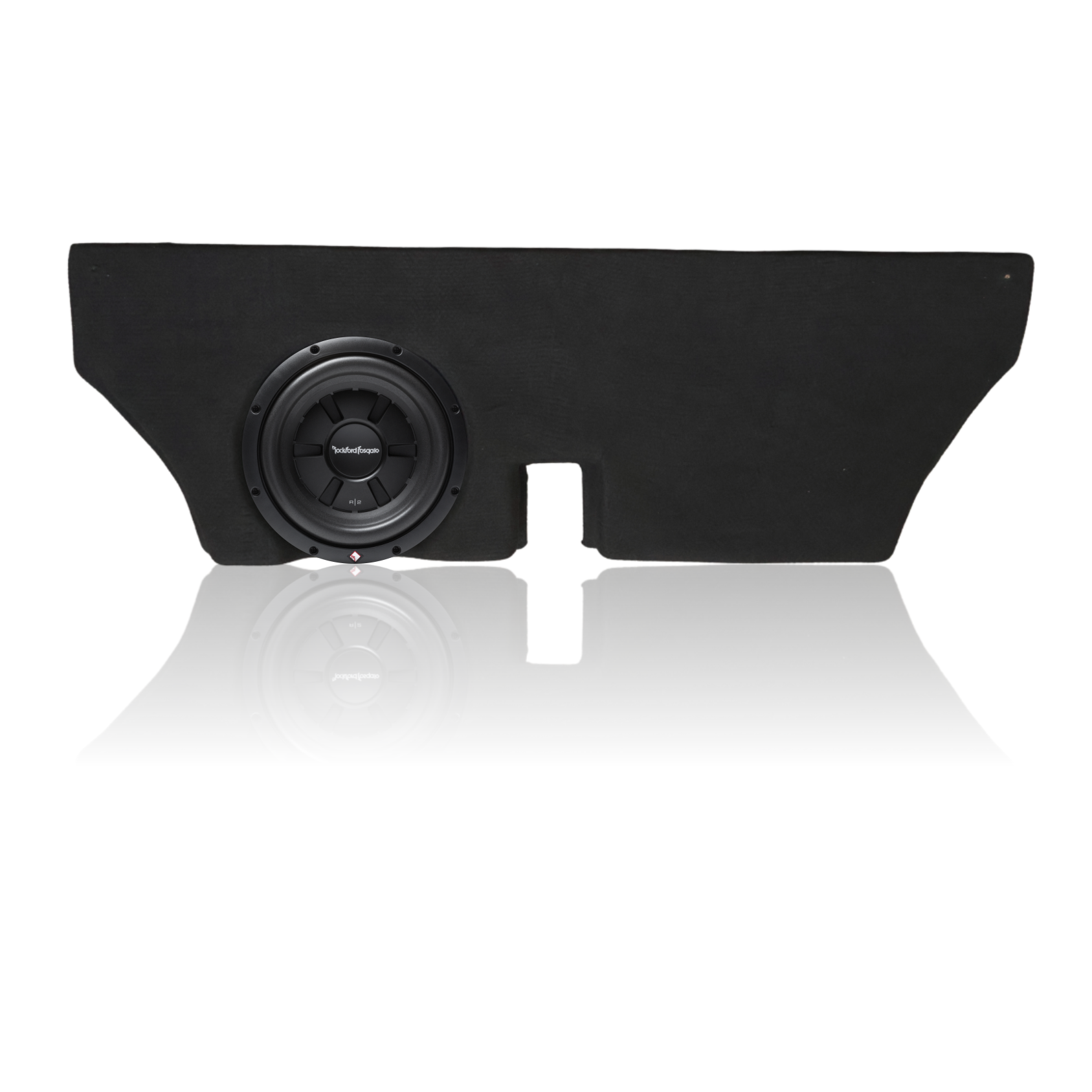

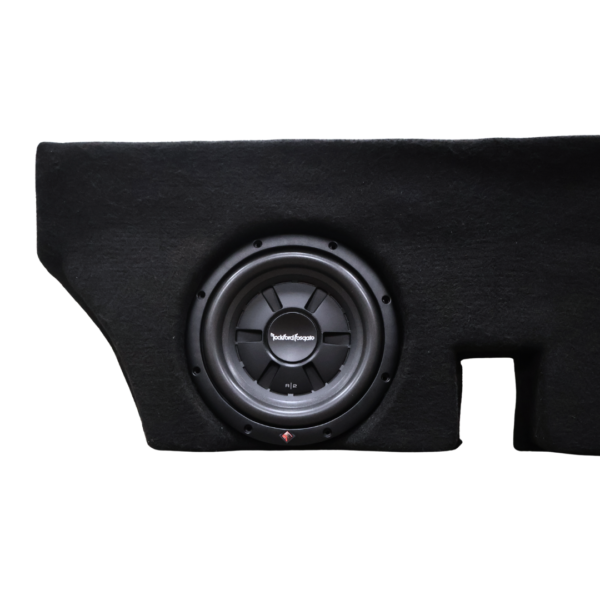

The specifically designed Subwoofer box under the seat of the vehicle for maximum
internal space giving the ultimate bass solution for your Ranger.

R2SD2-10 – Rockford Fosgate – Prime 10″ R2 2-Ohm DVC Shallow Subwoofer
Estimated delivery dates: Jun 18, 2026 - Jun 23, 2026

Overview

R2SD2-10

When you have no space for bass, our R2 10″ shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

FEATURES AT A GLANCE

  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Shallow Motor Assembly
  • Integrated PVC trim ring
  • Anodized aluminum voice coil former
  • StampCast basket with integrated spider venting
  • 1 Year Warranty

Specifications

R2SD2-10

Power Handling (Watts RMS)
200 Watts RMS
400 Watts Max
Speaker Connector
Dual 12 AWG compression
Shipping Weight
10.588 Lbs. (4.80 kg.)
Voice Coil Diameter
2″ (50 mm)
Fs (Hz)
38.1
Cutout Diameter
9.125 in. (232 mm)
Woofer Displacement
0.037 cu. ft. (1.05 Liters)
Sd (cm2)
333
Qts
0.68
Size
10″
Magnet Weight (oz)
45 oz. 1.28 kg.
Nominal Impedance
Dual 2-Ohm
Mounting Depth
3.417 in. (86 mm)
SPL (dB @ 1w/1m)
83
Qms
8.00
Qes
0.74
CEA-2031 Compliant
CEA-2031 Guidelines
Le (mH)
4.2
Re (Ohms)
3.80
Vas (Liters)
20.4
Xmax (mm)
8.0
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.7 cu. ft. (19.8 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
