Sale!

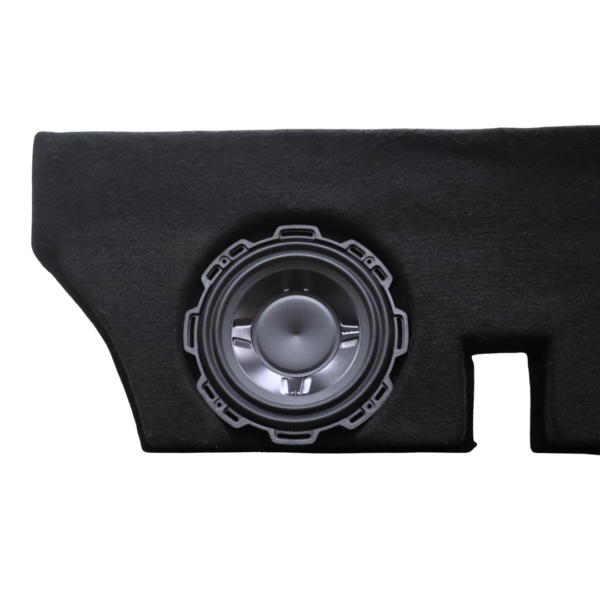

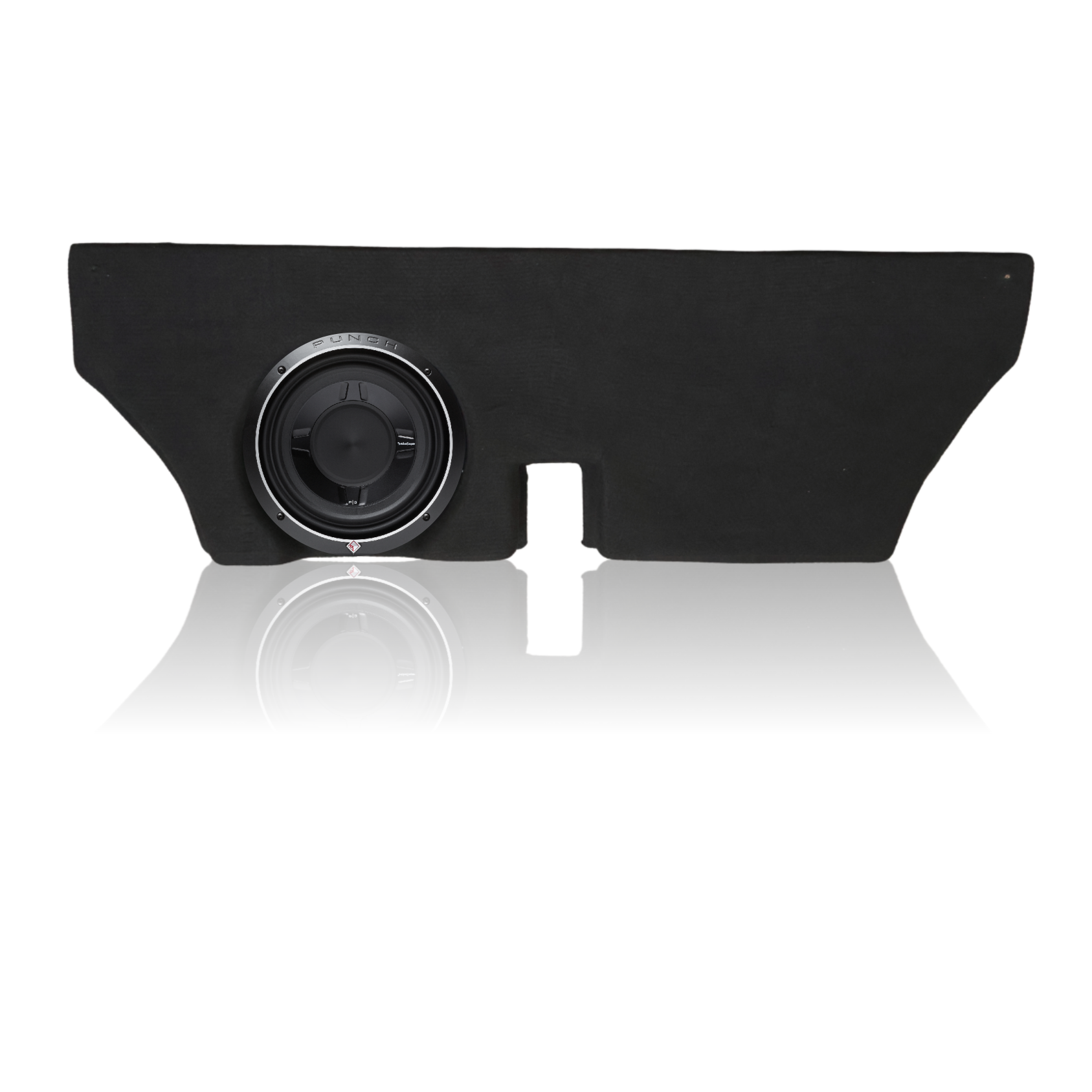

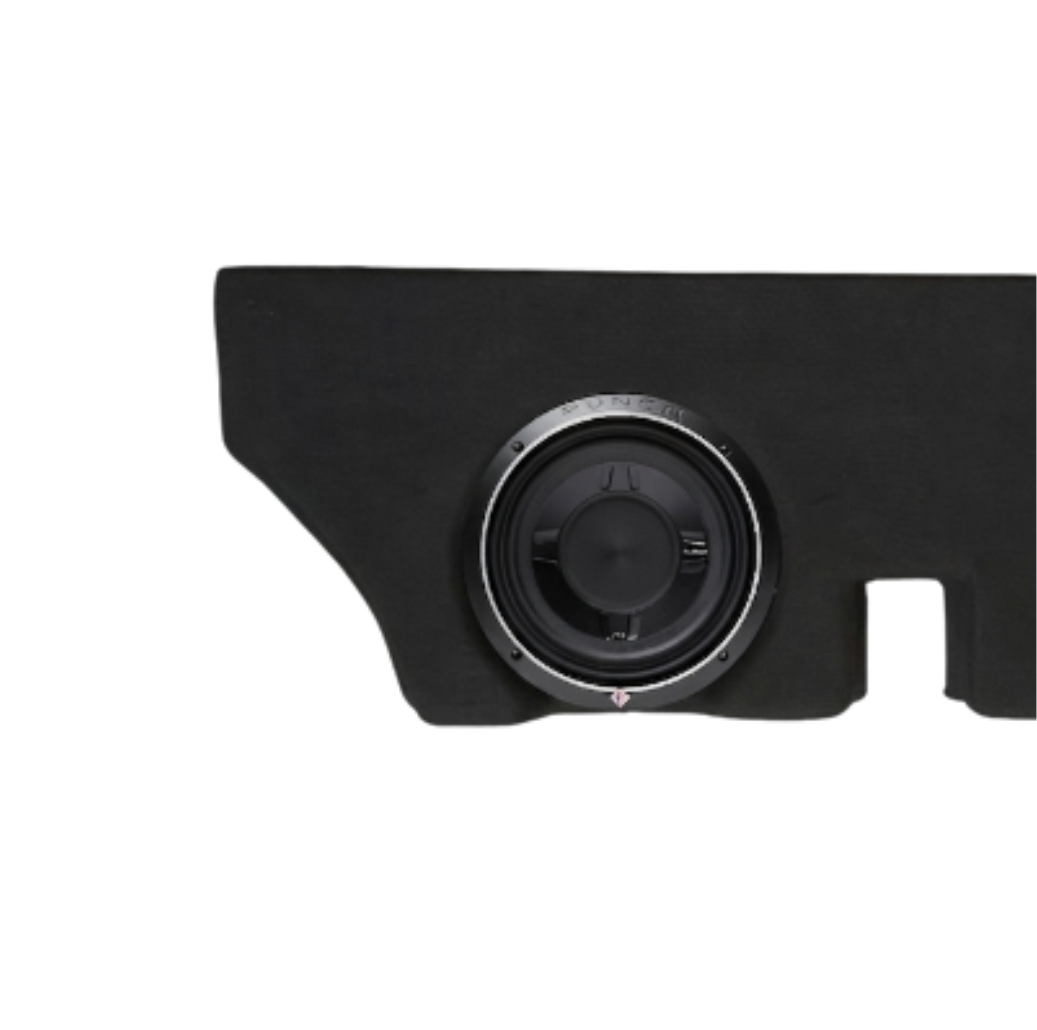

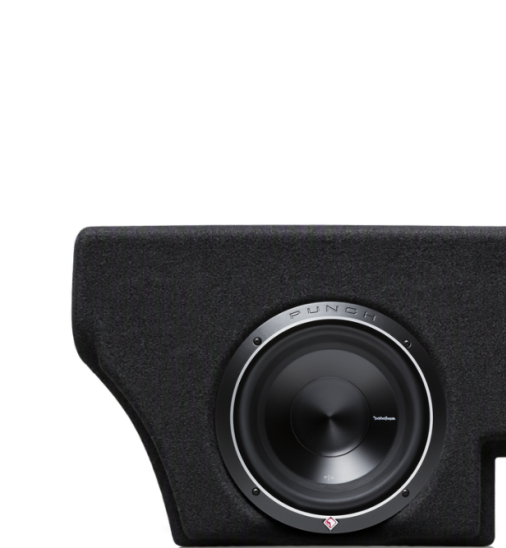

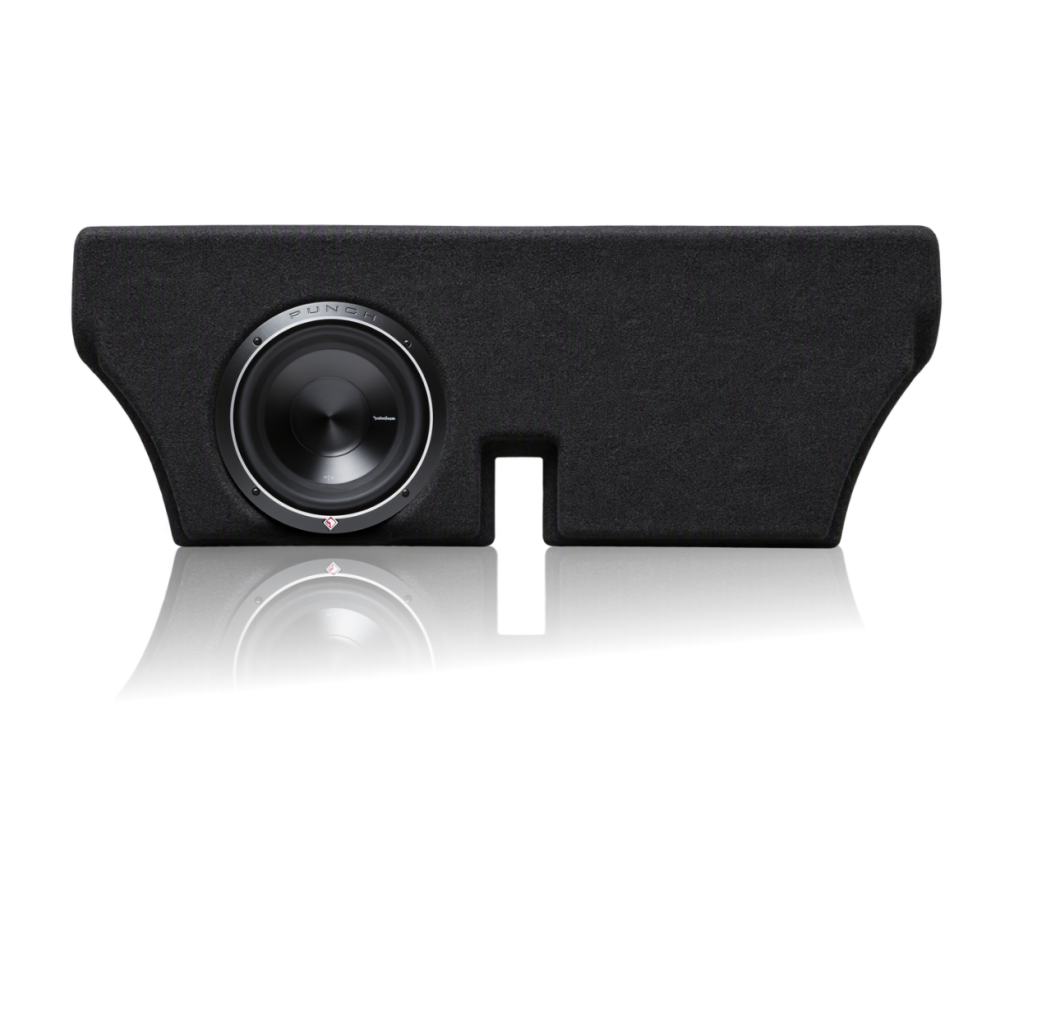

FRDNG-SUB-P3D4-10″ P3 4-Ohm DVC Subwoofer and Ford Ranger Enclosure – Under Seat

Only 1 left in stock

The specifically designed Subwoofer box under the seat of the vehicle for maximum
internal space giving the ultimate bass solution for your Ranger.

P3D4-10 – Rockford Fosgate – Punch 10″ P3 4-Ohm DVC Subwoofer
Estimated delivery dates: Jun 18, 2026 - Jun 23, 2026

Overview

P3D4-10

The P3D4-10 is Rockford Fosgate’s best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

FEATURES AT A GLANCE

  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • Anodized aluminum cone and dustcap
  • Extended pole piece and bumped vented backplate
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • Protective PVC textured magnet cover
  • 1 Year Warranty

Specifications

P3D4-10

Power Handling (Watts RMS)
500 Watts RMS
1000 Watts Max
Speaker Connector
Dual 10 AWG compression
Qts
0.56
Shipping Weight
17.3 Lbs. (7.8 kg)
SPL (dB @ 1w/1m)
82
Cutout Diameter
9.13 in. (232 mm)
Le (mH)
7.0
Size
10″
Xmax (mm)
15.9
Nominal Impedance
Dual 4-Ohm
Voice Coil Diameter
2.5″ (65.5 mm)
Magnet Weight (oz)
81 oz. (2.30 kg.)
Mounting Depth
6.18 in. (156.8 mm)
Fs (Hz)
28
Qes
0.63
Qms
5.00
Vas (Liters)
27.0
Re (Ohms)
6.40
Woofer Displacement
0.070 cu. ft. (2.0 Liters)
CEA-2031 Compliant
CEA-2031 Guidelines
Sd (cm2)
360
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
