DPLUG2 – Deutsch plug 2 – For RF marine speakers
Deutsch plug 2 – For RF marine speakers
Overview

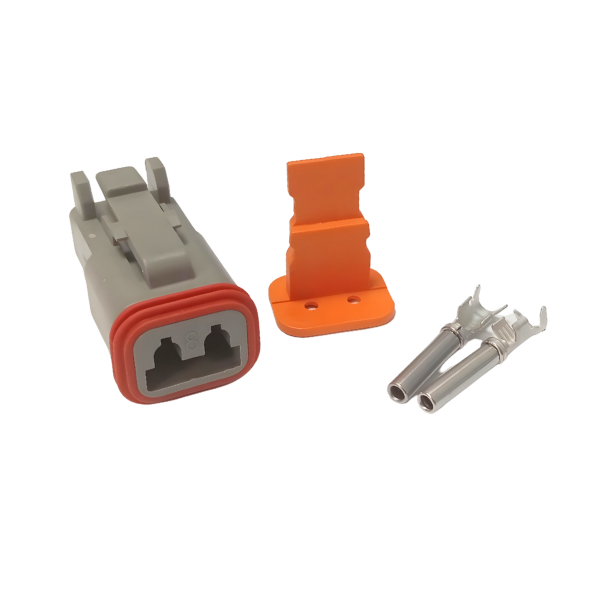

The DPLUG2 is a specialized, 2-pin waterproof Deutsch DT series automotive connector specifically distributed as a direct replacement component for Rockford Fosgate marine speakers. It provides a completely environmentally sealed, vibration-resistant audio connection capable of withstanding harsh, open-water salt and freshwater environments
Specifications
Pin Count: 2-Way (Positive and Negative terminal paths for a single audio channel).Amperage Capacity: 13 Amps continuous per pin using standard Size 16 contacts. Ingress Protection (IP): IP68 rated, meaning it can withstand total submersion up to 3 feet (1 meter) under water without loss of signal or moisture ingress. Housing Material: Highly durable, impact-resistant thermoplastic shell.
Key features
Complete Moisture Isolation: Silicon rubber seals compress tightly around the speaker insulation, preventing salt spray, rain, or lake water from slipping into the connector body. Anti-Corrosion Architecture: Thermoplastic housing and sealed internal chamber prevent exposure to ambient humidity, eliminating terminal oxidization and eliminating audio static or crackling. Dual-Lock Terminals: Secondary orange wedge locks physically prevent internal pins from backing out or shifting under severe mechanical stress.
