EPICFOUR – AudioControl – EPICFOUR 4-Channel Amplifier, 800W RMS

SKU EPICFOUR Category

In stock

Dealer Login to Order Now

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

Estimated delivery dates: Jul 18, 2026 - Jul 23, 2026

Overview

  • Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.

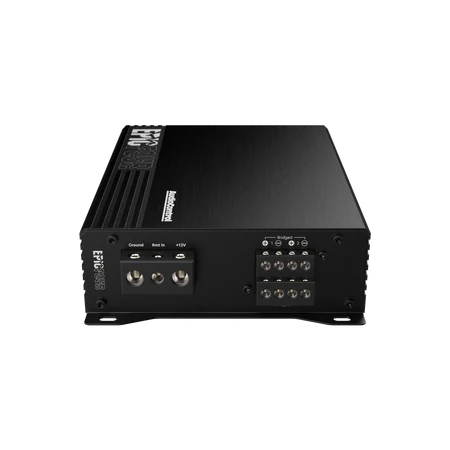

  • Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
  • 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
  • 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
  • Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

    • Output Over-Current Protection (OCP)
    • Input Over-Voltage Protection (OVP)
    • Input Under-Voltage Protection (UVP)
    • Output DC-Offset Protection (DCP)
    • Over-Temperature Protection (OTP)

Specifications

INPUTS

  • Line-Level Inputs: 500mV – 12V RMS

OUTPUTS

  • Continuous Power (RMS) @ 14.4V

    • 4 x 100 Watts @ 4 ohms

    • 4 x 200 Watts @ 2 ohms

    • 2 x 400 Watts @ 4 ohms Bridged

WEIGHTS & DIMENSIONS

  • DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H

PERFORMANCE

  • Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
  • S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
  • Power / Ground Wire Gauge: 4 AWG
  • Recommended Fuse Rating: 80 Amps
  • High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
  • Speaker Terminal Wire Gauge: 8 AWG

IN THE BOX: EPICFOUR, Wrench, Screws, Manual, Warranty

California Proposition 65

  • To our California customers: Please view your Proposition 65 warning here.

Features

• Compact High-Power Class D Amplifier

• High-Current Design – 2Ω Stable

• 4 x 100 Watts @ 4 ohms

• 4 x 200 Watts @ 2 ohms

• 2 x 400 Watts @ 4 ohms Bridged

• Smart Auto-Reset Protection Circuit

• 12 dB/octave Linkwitz-Riley Variable High Pass Filters

• Solid Power/Speaker Terminals with Hex Screws
