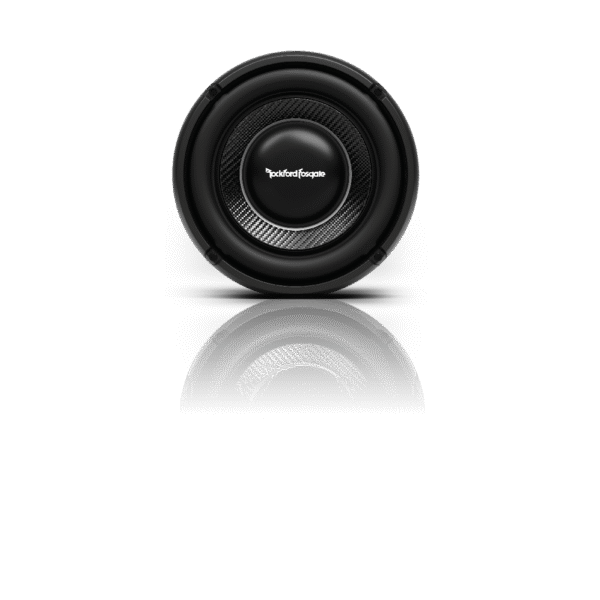

T1S1-10 – Rockford Fosgate – Power 10″ T1 Slim Single 1-Ohm Subwoofer

Out of stock

No ETA at this point!

Need bass but don’t have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 “Slimline” subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you’re already familiar with.

We’re calling these “slim” subwoofers because they don’t take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let’s just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don’t worry, you don’t need to understand it, you just have to listen to how awesome they sound!
  • Carbon fiber/PMI/glass fiber cone with aluminum dustcap
  • Injection molded foam surround with VAST™
  • Dual Nomex progressive spiders with integrated lead wires
  • Aluminum diecast frame with integrated heat sink fins
  • Custom insulated push spring 10 AWG terminals
  • Dual wound 2.5″ voice coil with interior/exterior windings
  • Encapsulating voice coil to former coupling technology (patent pending)
  • Detachable die cast aluminum trim ring
  • Vented pole piece
  • High temp high energy neodymium motor structure
  • Proprietary split yoke pass thru motor technology (patent pending)
  • Integrated copper cap heat sinking shorting ring (IDHS)
  • Optional grille insert available
  • Optimized for sealed enclosures
  • 1 Year Warranty
[wpced]

Overview

Need bass but don’t have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 “Slimline” subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you’re already familiar with.

We’re calling these “slim” subwoofers because they don’t take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let’s just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don’t worry, you don’t need to understand how it works, you just have to listen to how awesome they sound!

FEATURES AT A GLANCE

  • Dual Nomex progressive spiders with integrated lead wires
  • Carbon fiber/PMI/glass fiber cone with aluminum dustcap
  • Injection molded foam surround with VAST™
  • Custom insulated push spring 10 AWG terminals
  • Detachable die cast aluminum trim ring
  • Aluminum diecast frame with integrated heat sink fins
  • Integrated copper cap heat sinking shorting ring (IDHS)
  • Vented pole piece
  • High temp high energy neodymium motor structure
  • Dual wound 2.5″ voice coil with interior/exterior windings
  • Encapsulating voice coil to former coupling technology (patent pending)
  • Optimized for sealed enclosures
  • Proprietary split yoke pass thru motor technology (patent pending)
  • 1 Year Warranty
  • Optional grille insert available

Specification

Speaker Connector
10 AWG slot loaded
Voice Coil Diameter
2.28″ (58 mm)
Subwoofer Type
Shallow
CEA-2031 Compliant
CEA-2031 Guidelines
Size
10″
Fs (Hz)
42
Le (mH)
0.28
Sd (cm2)
356
Nominal Impedance
1-Ohm
Qts
0.95
Power Handling (Watts RMS)
500 Watts RMS
1000 Watts Max
Magnet Weight (oz)
15.10 oz. (0.43 Kg)
Qes
1.05
Re (Ohms)
0.9
Vas (Liters)
13.1
Qms
9.43
Xmax (mm)
15
Mounting Depth
3.01 in. (76.5 mm)
Voice Coil Type
Single Voice Coil
SPL (dB @ 1w/1m)
82
SPL (dB @ 2.8v/1m)
85
Cutout Diameter
9.13 in. (232 mm)
Woofer Displacement
0.028 cu. ft. (0.82 Liters)
Sealed Box Volume (Vb)
0.8 cu. ft. (22.6 Liters)
Shipping Weight
9.6 Lbs. (4.3 Kg.)
Vented Box Volume (Vb)

1.5 cu. ft. (42.4 Liters)

Re (Ohms)
0.9
Vas (Liters)
13.1
Qms
9.43
Xmax (mm)
15
Mounting Depth
3.01 in. (76.5 mm)
Voice Coil Type
Single Voice Coil
SPL (dB @ 1w/1m)
82
SPL (dB @ 2.8v/1m)
85
Cutout Diameter
9.13 in. (232 mm)
Woofer Displacement
0.028 cu. ft. (0.82 Liters)
Sealed Box Volume (Vb)
0.8 cu. ft. (22.6 Liters)
Shipping Weight
9.6 Lbs. (4.3 Kg.)
Vented Box Volume (Vb)
1.5 cu. ft. (42.4 Liters)

Videos

Owner's Manual

T1S1-10.pdf Owners Manual
